EcoSmart Fire
EcoSmart Fire Frame 800SS Fireplace Insert
EcoSmart Fire Frame 800SS Fireplace Insert
In stock
Best fuel efficiency in the Frame range
Free UK Delivery
- 11,430 BTU/h XL5 Ethanol Burner
🚚 Estimated Delivery Date:
Delivery date to be confirmed via email once order is placed
Couldn't load pickup availability
Buying with confidence
- Manufacturer warranty: 2 years on the bioethanol burner and stainless steel parts, 1 year on everything else.
- 45 day returns. Unused and in its original packaging.
- Damaged on arrival? Check it before you sign, and tell us as soon as you can, ideally within 48 hours, so we can sort a replacement quickly. This does not affect your statutory rights.
- Free UK mainland delivery.
- Not sure it is the right one? Call, email or chat with us before you order.
-
Overview:
- The Frame 800SS widens the Frame Series to a 1016mm linear opening while keeping the lowest fuel draw in the range, a deliberate trade of flame height for burn time rather than a step up in size for its own sake.
-
Design & Build:
- Same zero-clearance stud-frame construction and toughened glass fire screen as the rest of the Frame range, built around a Grade 304 stainless XL500 burner. At 11,430 BTU/h (12.06 MJ/h) it runs cooler than the 600SS despite the wider glass.
-
What it does well:
- That lower output stretches a 5-litre fill to 10-13 hours, the longest burn time of any Frame size relative to its tank capacity, useful if you want the fire running through a full evening without a mid-way refuel. At 38kg it’s still a two-person, not a crane, installation.
-
Trade-off worth knowing:
- It's the lowest thermal output in the whole Frame range, lower even than the smaller 600SS's 13,000 BTU/h, so its 80m³ rating is only modestly ahead of the smaller 600SS’s 70m³, not a big jump for the extra width. If heat output matters more than burn time, the 1000SS delivers more warmth from a similarly sized opening.
-
Certification:
- This model is certified to EN 16647, the UK and EU safety standard for indoor bioethanol fireplaces.
Frame 800SS questions, answered
Does the Frame 800SS need a chimney or flue?
No. It runs on bioethanol, which burns clean with no smoke, embers or soot, so there is nothing to vent. It frames into a wall or opening with zero clearance to combustibles - no masonry chimney, gas line or flue required.
Can the Frame 800SS be used both indoors and outdoors?
Yes, it is rated for both. Indoors it needs a room of at least 80m³.
How is the Frame 800SS installed?
It frames directly into a stud wall (wood or metal) or an existing hearth opening, with zero clearance to combustibles required around the frame. There is no gas line, flue or masonry work: once the opening is framed to size, the unit drops in and connects to nothing else. At 38kg it is a two to four-person lift into place depending on the model; check the exact figure on this page before planning your install.
What does the Frame 800SS actually cost to run for an evening?
A full 5 litre fill burns for 10-13 hours. We sell e-NRG bioethanol at £65 for a 20 litre carton, so a full fill is about £16 and a three-hour evening works out at roughly £4 to £5. There is no standing cost, since it only uses fuel while it is alight.
Which Frame Series size should I choose?
The Frame 800SS trades flame height for burn time: it runs cooler than the smaller 600SS despite the wider glass, which stretches a 5-litre fill to 10-13 hours, the longest burn time relative to tank capacity of any Frame size. If heat output matters more than burn time, the 1000SS delivers more warmth from a similarly sized opening.
Which fuel does the Frame 800SS burn, and do you sell it?
It runs on e-NRG bioethanol, which we stock in 20 litre cartons. Bioethanol produces no smoke, embers or ash, so there is nothing to clean out after use.
Are there any accessories that fit the Frame 800SS?
Yes. Its XL500 burner takes the XL Baffles, sold separately.
Is the Frame 800SS certified for indoor use?
Yes. This model is certified to EN 16647, the UK and EU safety standard for indoor bioethanol fireplaces.
Who the Frame 800SS is for
It is a good fit if:
- You want the fire running through a full evening without a mid-way refuel: this has the longest burn-time-to-fuel ratio in the range.
- A two-person, not a crane, installation matters: at 38kg it is manageable without specialist lifting gear.
Consider something else if:
- Heat output matters more than burn time: the Frame 1000SS delivers more warmth from a similarly sized opening.
| Model | Burner | Pick it for | Opening width | Price | Weight |
|---|---|---|---|---|---|
| Frame 600SS | BK5 | Smallest, lightest, fits an accent wall or small room | 75cm | £1,995 | 29kg |
| Frame 800SS (this one) | XL500 | Longest burn time in the range, lowest output | 102cm | £2,495 | 38kg |
| Frame 1000SS | XL700 | Genuine step up in heat output for open-plan rooms | 122cm | £2,995 | 49.7kg |
| Frame 1200SS | XL900 | Wide architectural opening with real heat behind it | 142cm | £3,995 | 57.9kg |
| Frame 1500SS | XL1200 | Flagship: widest, highest output, largest room rating | 172cm | £4,495 | 69.7kg |
Prices are current at the time of writing; follow any link for that model's live price.
Delivery Information
Delivery Information
Key Points of Interest
Key Points of Interest
Specifications
Specifications
| Category | Details |
|---|---|
| Material | Mild Steel (Zinc Sealed) Hi-temp Powder Coat Surround, Toughened Glass Fire Screen, Grade 304 Stainless Steel (Optional Black Ceramic Coating) Burner |
| Weight | 38kg |

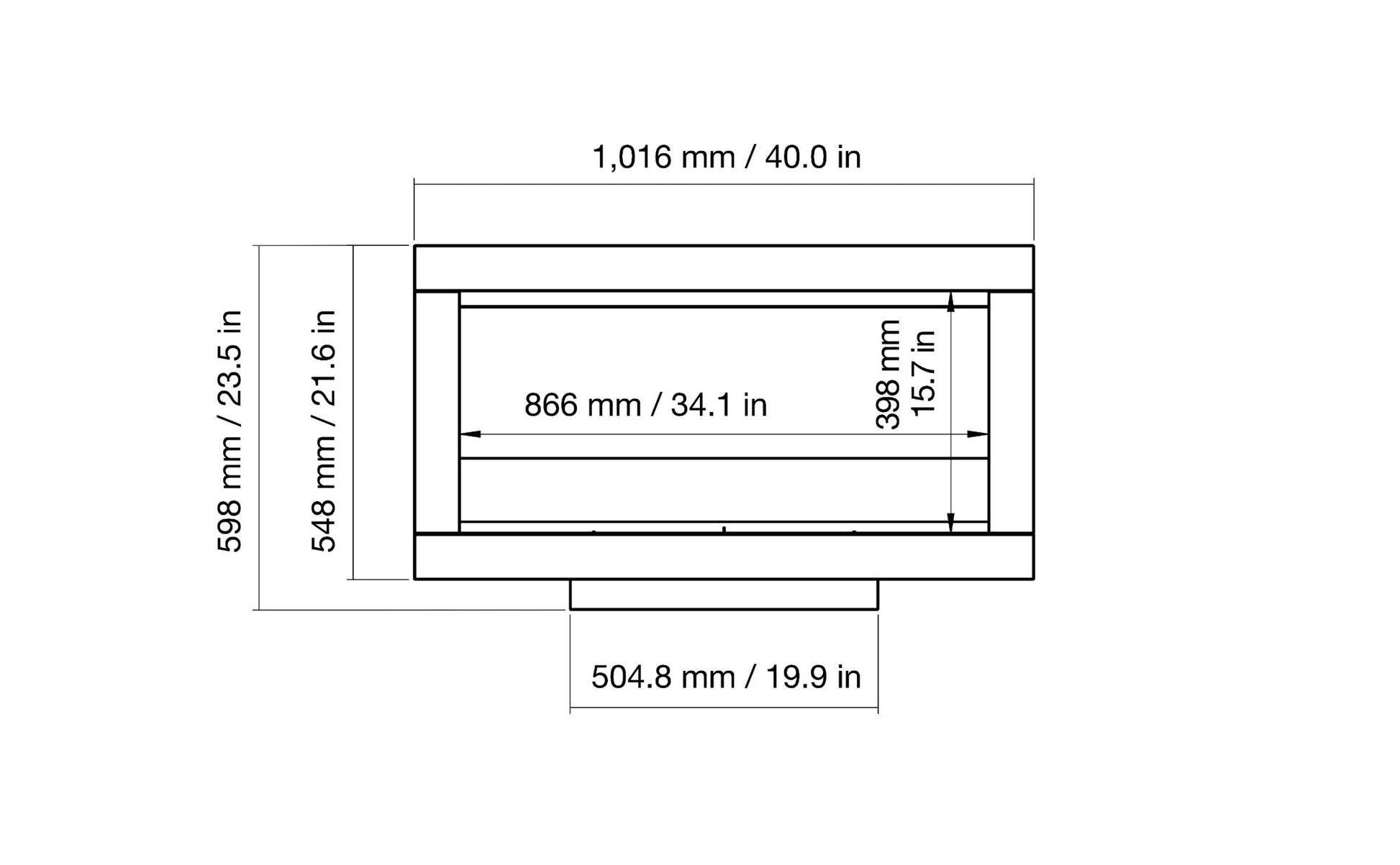

| Dimensions (W x D x H) | 102cm x 36cm x 60cm |
| Finish | Black |
| Fuel | Bioethanol only (Indoor or Outdoor) |
| Thermal output | 11,430 BTU/h (12.06 MJ/h) |
| Burn time | 10-13 hours per fill |
| Fuel capacity | 5 litres |
| Minimum room size (indoor use) | 80m³ |
