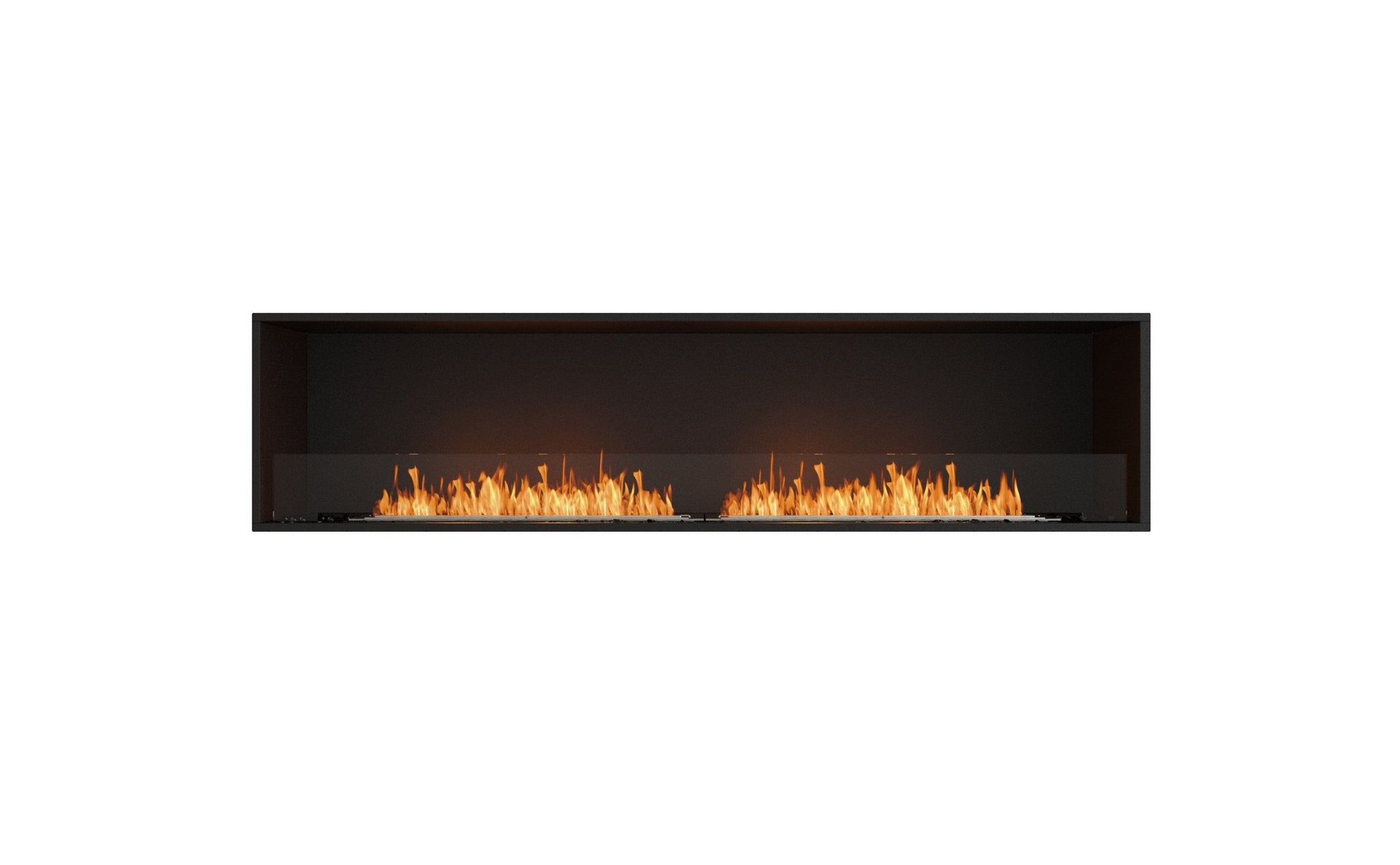

EcoSmart Fire Flex 86SS Fireplace Insert

Name: EcoSmart Fire Flex 86SS Fireplace Insert
Brand: EcoSmart Fire
SKU: ESF.FX.86SS
Price: 6995.0 GBP
Availability: InStock

£6,995.00

Save £-6,995.00 Sale Sold out

In stock

Configuration All Flame Log Box – Left Log Box – Right Log Boxes – Both Sides

Burner Finish Stainless Steel Black

Product variants

Quantity

🚚 Estimated Delivery Date:

01 September 2026

Delivery date to be confirmed via email once order is placed

Overview:
- The Flex 86SS is the first size in the Flex range wide enough to need two burners for its full-width All Flame configuration, a 2390mm opening built for a genuine architectural centrepiece rather than a single-room feature.
Design & Build:
- Zinc-sealed mild steel surround and toughened glass, built around twin Grade 304 stainless XL900 burners in All Flame form (30,000 BTU/h combined from an 18-litre tank), or a single larger XL1200 (Log Box Left/Right) or XL900 (Log Boxes Both Sides) as the log storage narrows the flame width. The burner is available in Stainless Steel as standard, or a Black ceramic-coated finish for a flat, monochrome look, at a fixed premium.
What it does well:
- All Flame runs 8 to 13 hours per fill and is rated for a 220m³ room, nearly double the coverage of the single-burner 68SS All Flame. Even its most reduced configuration, log boxes on both sides, still runs a single XL900 burner at 15,000 BTU/h, real heat output rather than a token flame.
Trade-off worth knowing:
- At 2390mm and up to 122kg, this is a multi-person installation into a genuinely large wall, not a retrofit into an existing standard opening. If 86SS is more scale than the room needs, the 68SS delivers a similar look with a lighter, single-burner build.

Delivery Information

Standard Delivery:

Ground delivery to the easiest access point on your property. Does not include inside delivery, packaging removal or assembly.

Bioethanol Fuel:

e-NRG Bioethanol may ship separately from your EcoSmart Fire order and can arrive on a different day. A separate tracking number for the fuel order will be emailed to you.

Ship Times:

Zone 1 (England / Wales): 5-10 business days.
Zone 2 (Scotland / Republic of Ireland / Northern Ireland / Isle of Man): 10-15 business days.
Please allow 1-3 business days for the order to be processed before dispatch. Estimated ship times are subject to change due to unforeseen events.

Installation Guide:

Full installation and operating instructions: https://cdn.mad-uk.com/media/version/version/ESF-CI-MASTER-FLEX_Series-_FX-V2505_-F-lr.pdf

4 configurations at one price: All Flame, Log Box Left, Log Box Right, Log Boxes Both Sides
8-13 hour burn time on the All Flame configuration
Stainless Steel or Black burner finish, +£1,000

Category	Details
Material	Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround, Toughened Glass; Grade 304 Stainless Steel Burner
Weight	122kg (All Flame), 119kg (log-box configurations)

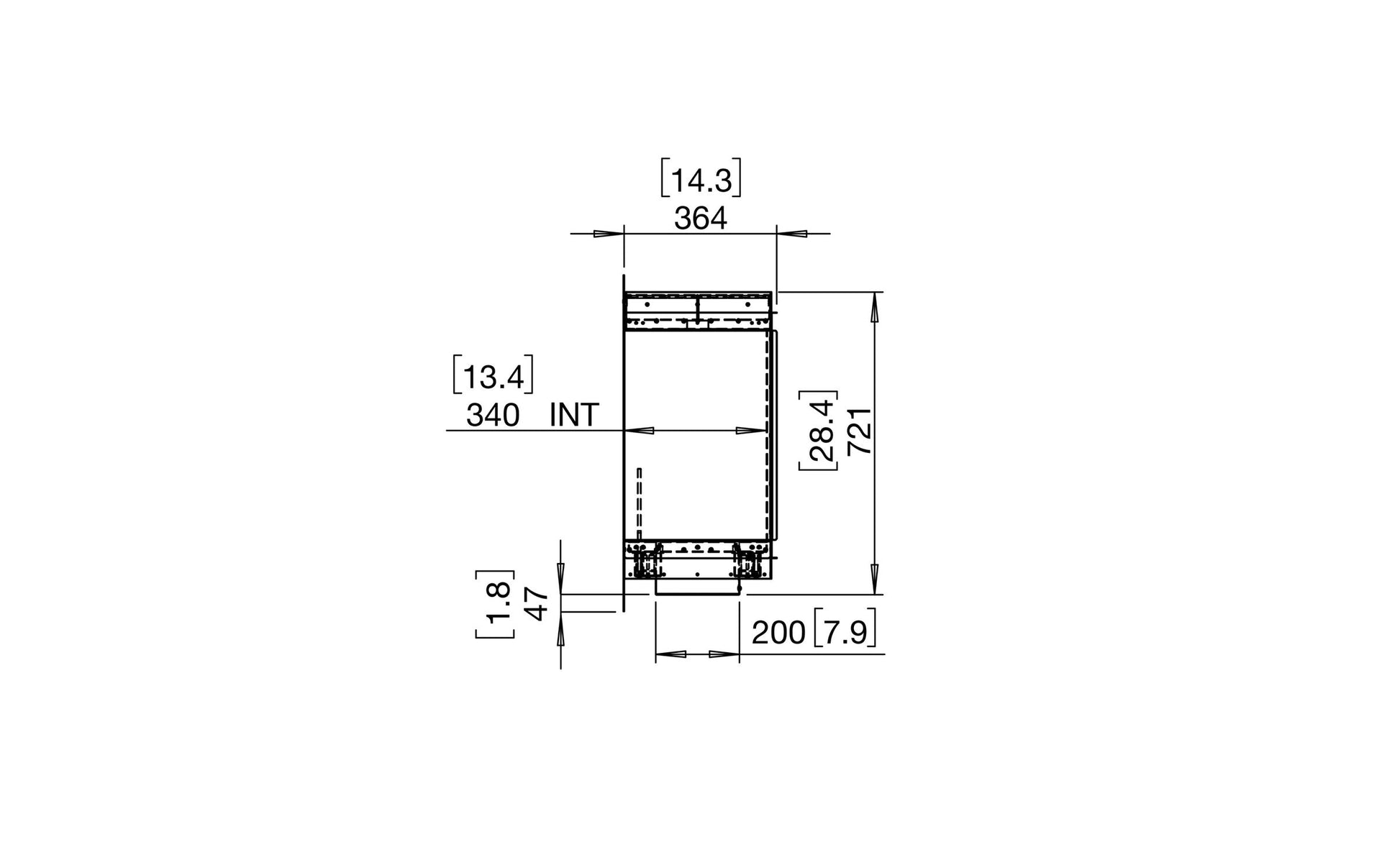

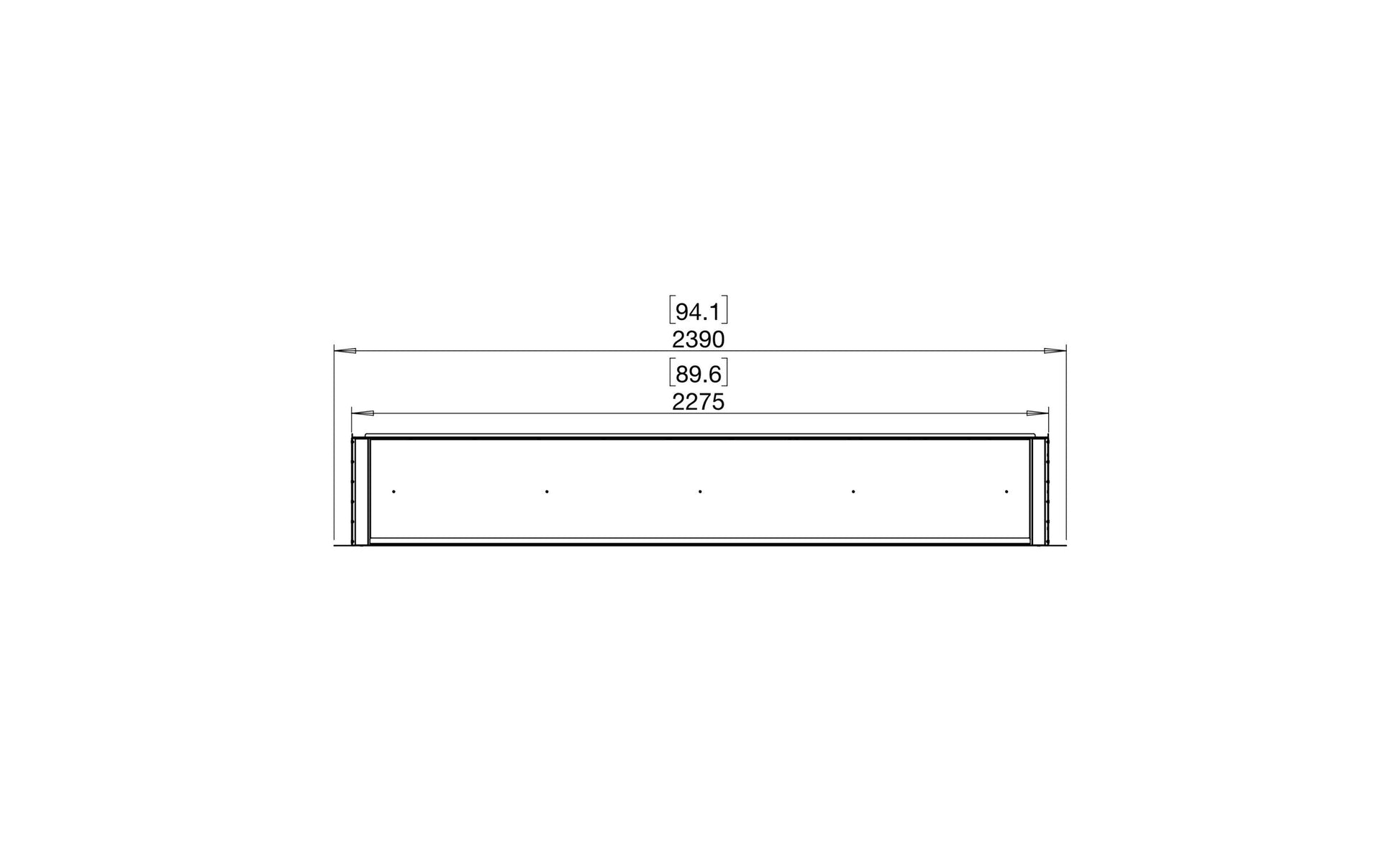

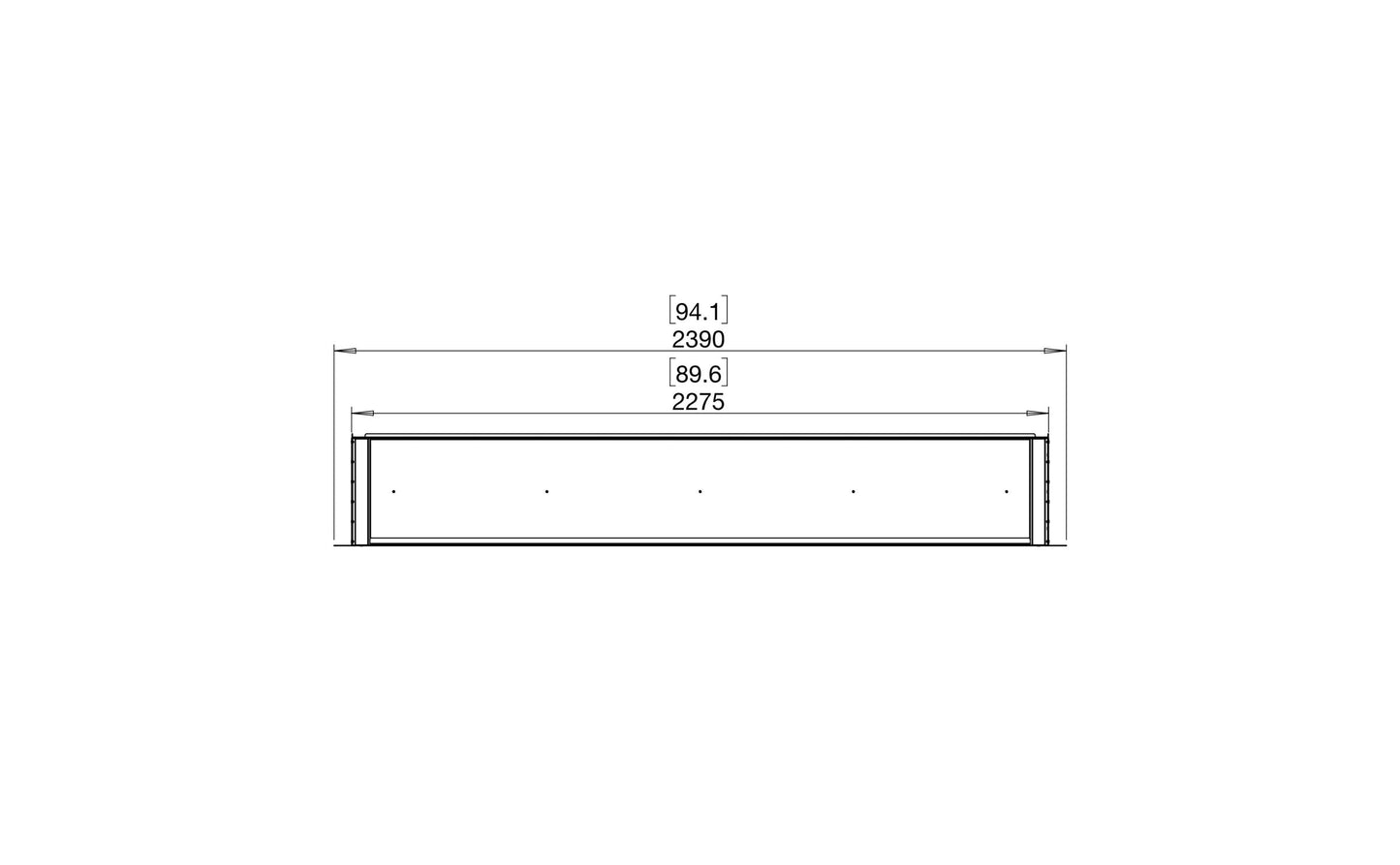

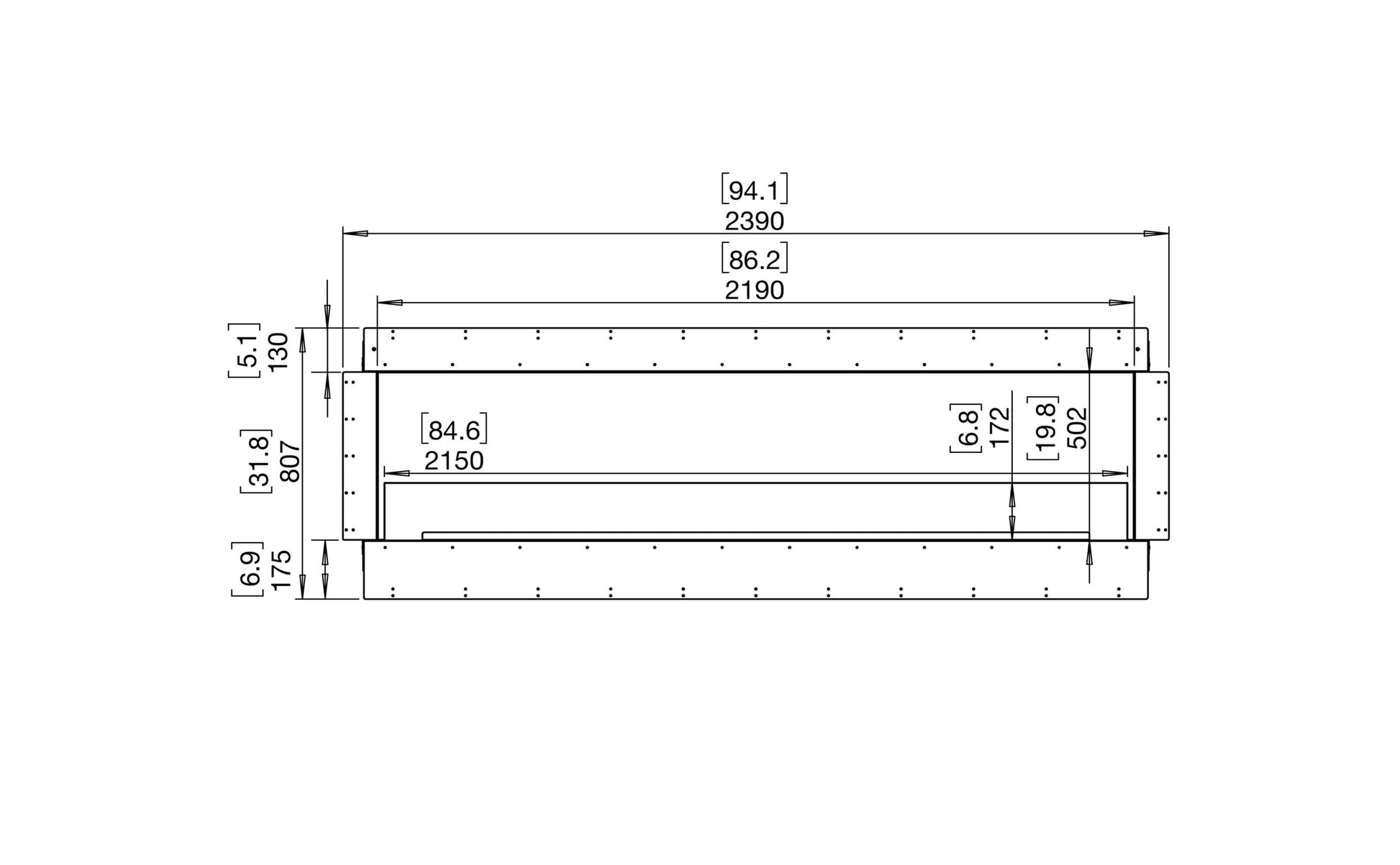

Dimensions (W x D x H)	2390mm x 365mm x 807mm
Surround colour	Black
Burner finish	Stainless Steel (standard) or Black ceramic-coated (+£1,000)
Fuel	Bioethanol only (Indoor or Outdoor)
Thermal output	30,000 BTU/h (31.65 MJ/h)
Burn time	8-13 hours per fill
Fuel capacity	18 litres
Minimum room size (indoor use)	220m³
Burner compliance	EN 16647 compliant burner (manufacturer-approved)

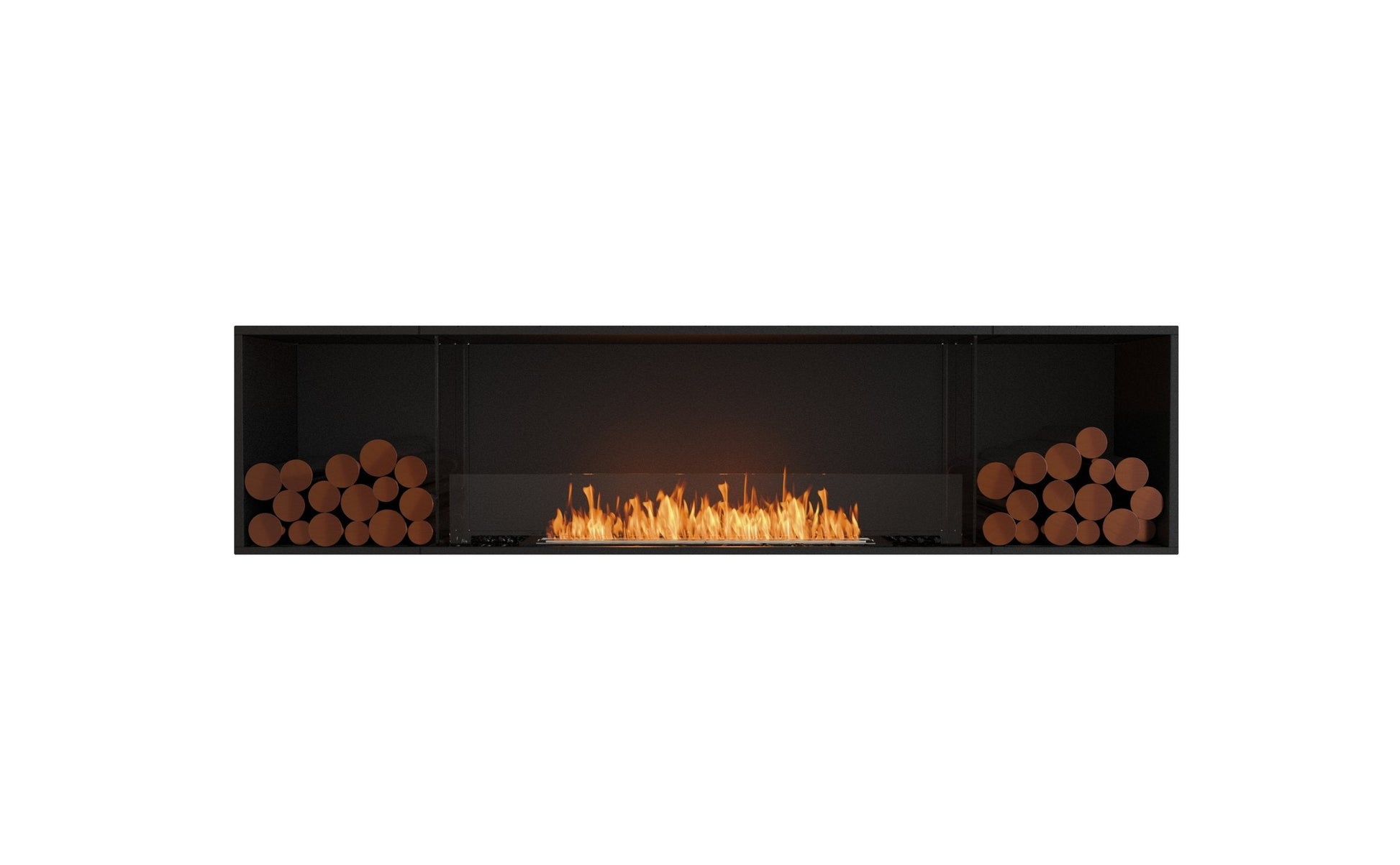

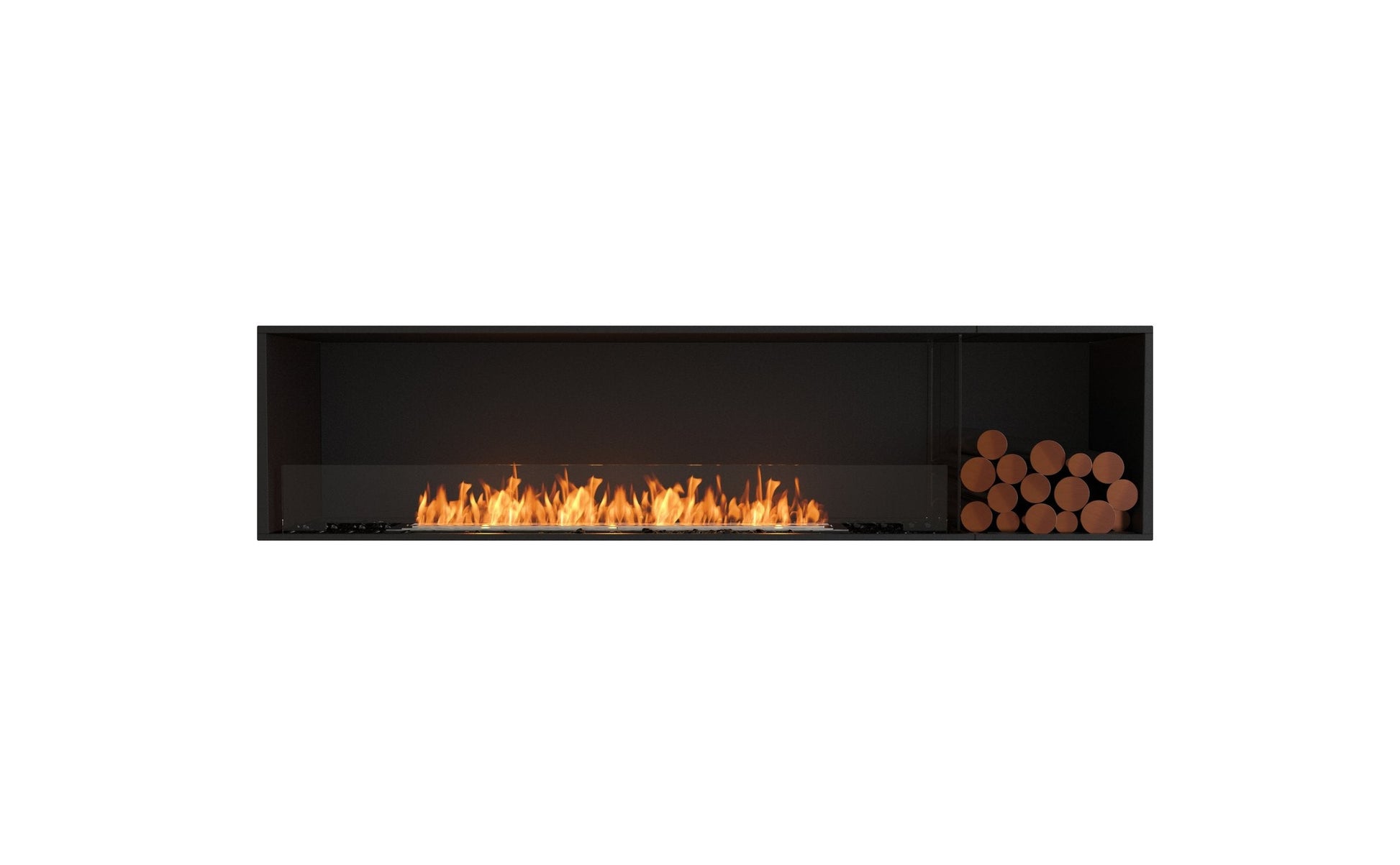

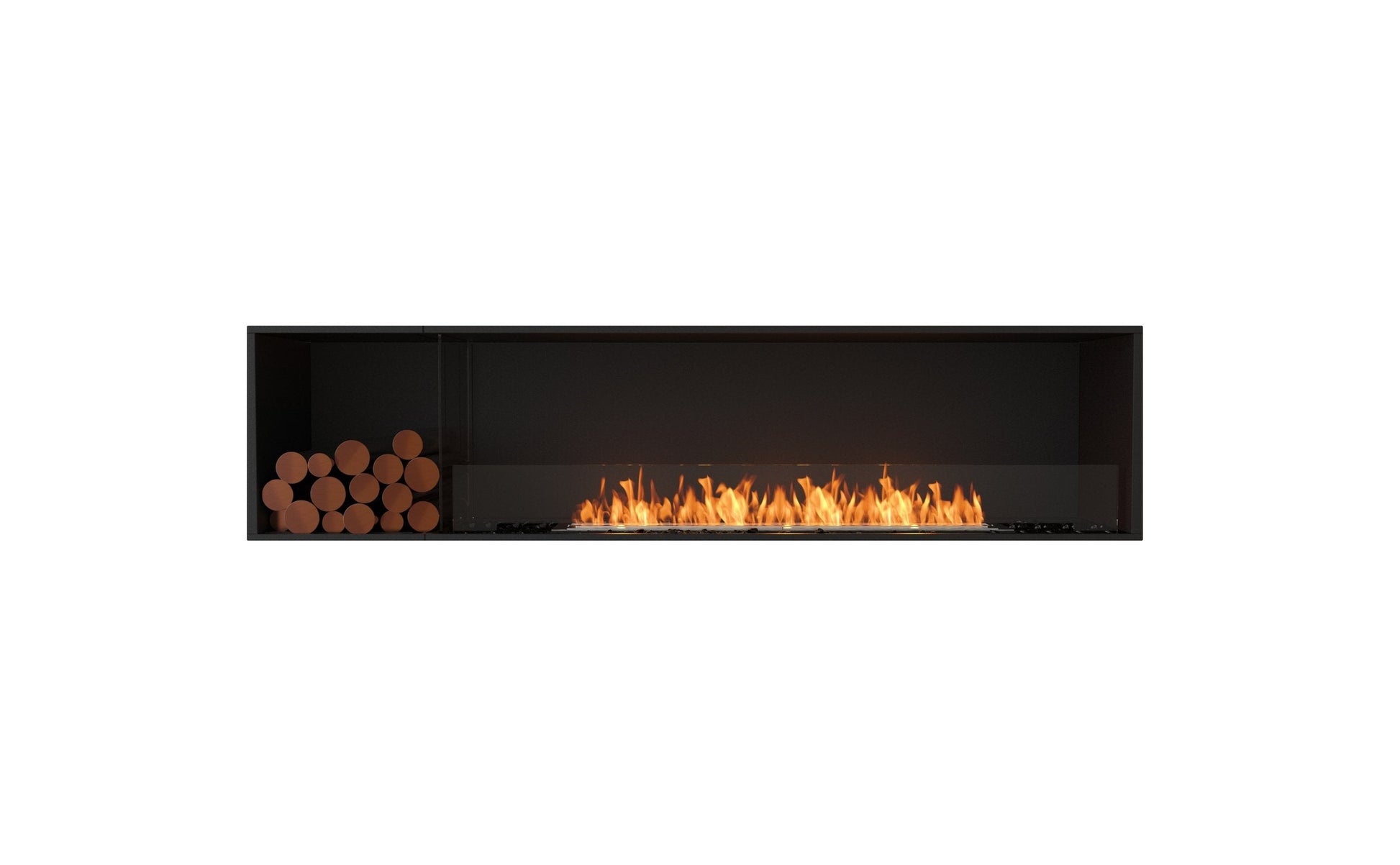

Configuration options	From 86SS upward, All Flame chains two burners (XL900 x2, 30,000 BTU/h, 18L, rated to 220m³) rather than one — the opening is too wide for a single burner to span. Log Box – Left/Right narrow to a single XL1200 (15,290 BTU/h, 10L, 115m³); Log Boxes – Both Sides narrows further to a single XL900 (15,000 BTU/h, 9L, 110m³). All four configurations are the same price.
