EcoSmart Fire

EcoSmart Fire Flex 158SS Fireplace Insert

Name: EcoSmart Fire Flex 158SS Fireplace Insert
Brand: EcoSmart Fire
SKU: ESF.FX.158SS
Price: 12395.0 GBP
Availability: InStock

£12,395.00

Save £-12,395.00 Sale Sold out

In stock

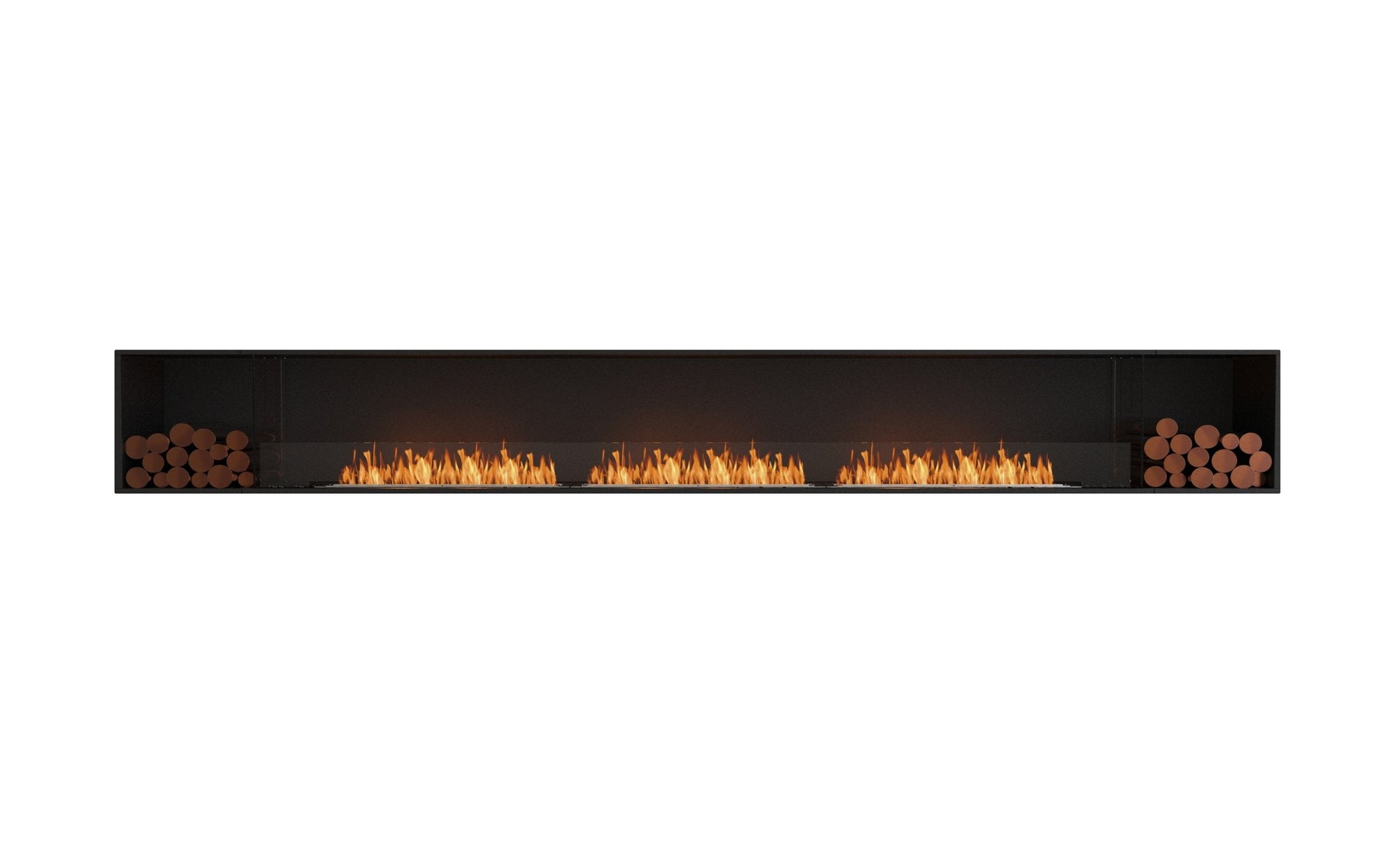

Configuration All Flame Log Boxes – Both Sides

Burner Finish Stainless Steel Black

Product variants

Quantity

🚚 Estimated Delivery Date:

01 September 2026

Delivery date to be confirmed via email once order is placed

Overview:
- The Flex 158SS is the largest and widest size in the Flex range, a 4230mm opening running three burners across its full-width All Flame configuration. Unlike 68SS, 86SS, 104SS and 122SS, which each offer four configurations, the 158SS offers only two — All Flame or log boxes on both sides — with no single-side log box option.
Design & Build:
- Zinc-sealed mild steel surround and toughened glass, built around triple Grade 304 stainless XL1200 burners in All Flame form (45,870 BTU/h combined from a 30-litre tank), stepping down to triple XL900 burners when log boxes sit on both sides. The burner is available in Stainless Steel as standard, or a Black ceramic-coated finish for a flat, monochrome look, at a fixed premium.
What it does well:

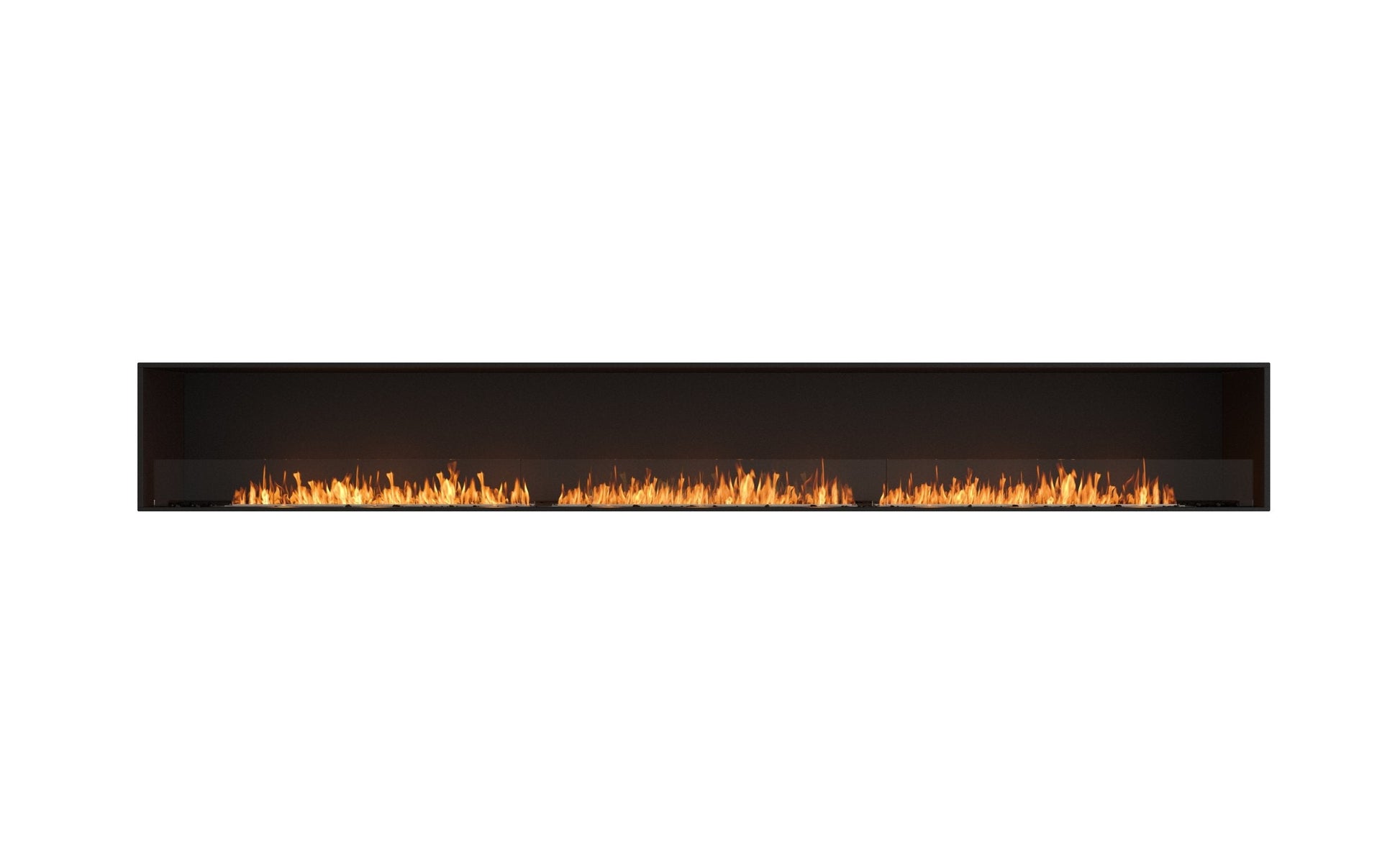

- All Flame runs 9 to 14 hours per fill and is rated for a 345m³ room, the largest of any size here. Even the log-boxes-both-sides configuration still runs three burners at 45,000 BTU/h, more output than every size below 122SS manages at full width.
Trade-off worth knowing:
- At 4230mm and up to 222kg, this is the single largest architectural commitment in the range — a genuinely bespoke wall installation, not a retrofit. If that scale isn’t needed, the 140SS or 122SS deliver comparable presence at meaningfully less weight and cost.

Delivery Information

Standard Delivery:

Ground delivery to the easiest access point on your property. Does not include inside delivery, packaging removal or assembly.

Bioethanol Fuel:

e-NRG Bioethanol may ship separately from your EcoSmart Fire order and can arrive on a different day. A separate tracking number for the fuel order will be emailed to you.

Ship Times:

Zone 1 (England / Wales): 5-10 business days.
Zone 2 (Scotland / Republic of Ireland / Northern Ireland / Isle of Man): 10-15 business days.
Please allow 1-3 business days for the order to be processed before dispatch. Estimated ship times are subject to change due to unforeseen events.

Installation Guide:

Full installation and operating instructions: https://cdn.mad-uk.com/media/version/version/ESF-CI-MASTER-FLEX_Series-_FX-V2505_-F-lr.pdf

Category	Details
Material	Mild Steel (Zinc Sealed, High-Temp Powder Coat) Surround, Toughened Glass; Grade 304 Stainless Steel Burner
Weight	222kg (All Flame), 219kg (log boxes both sides)

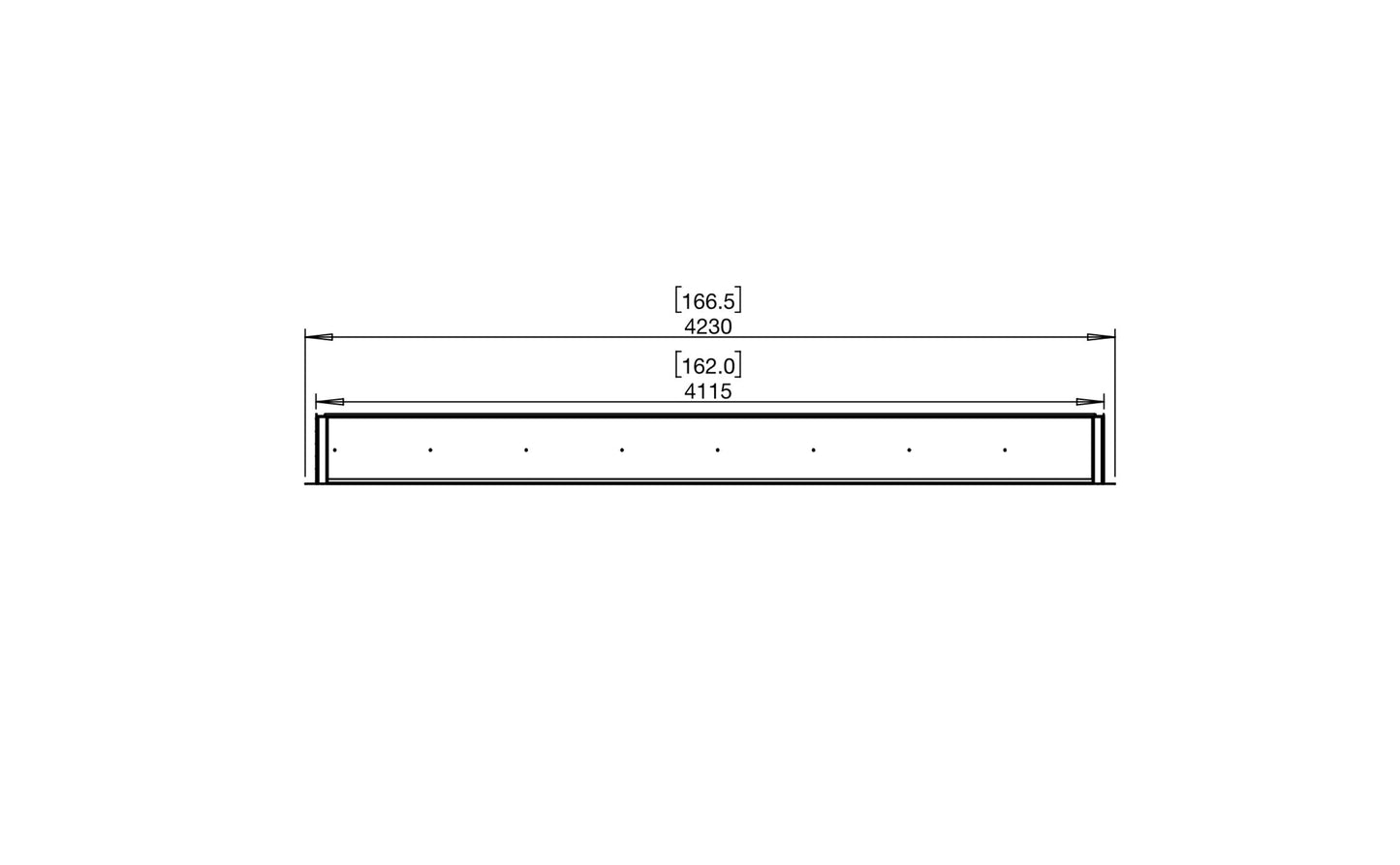

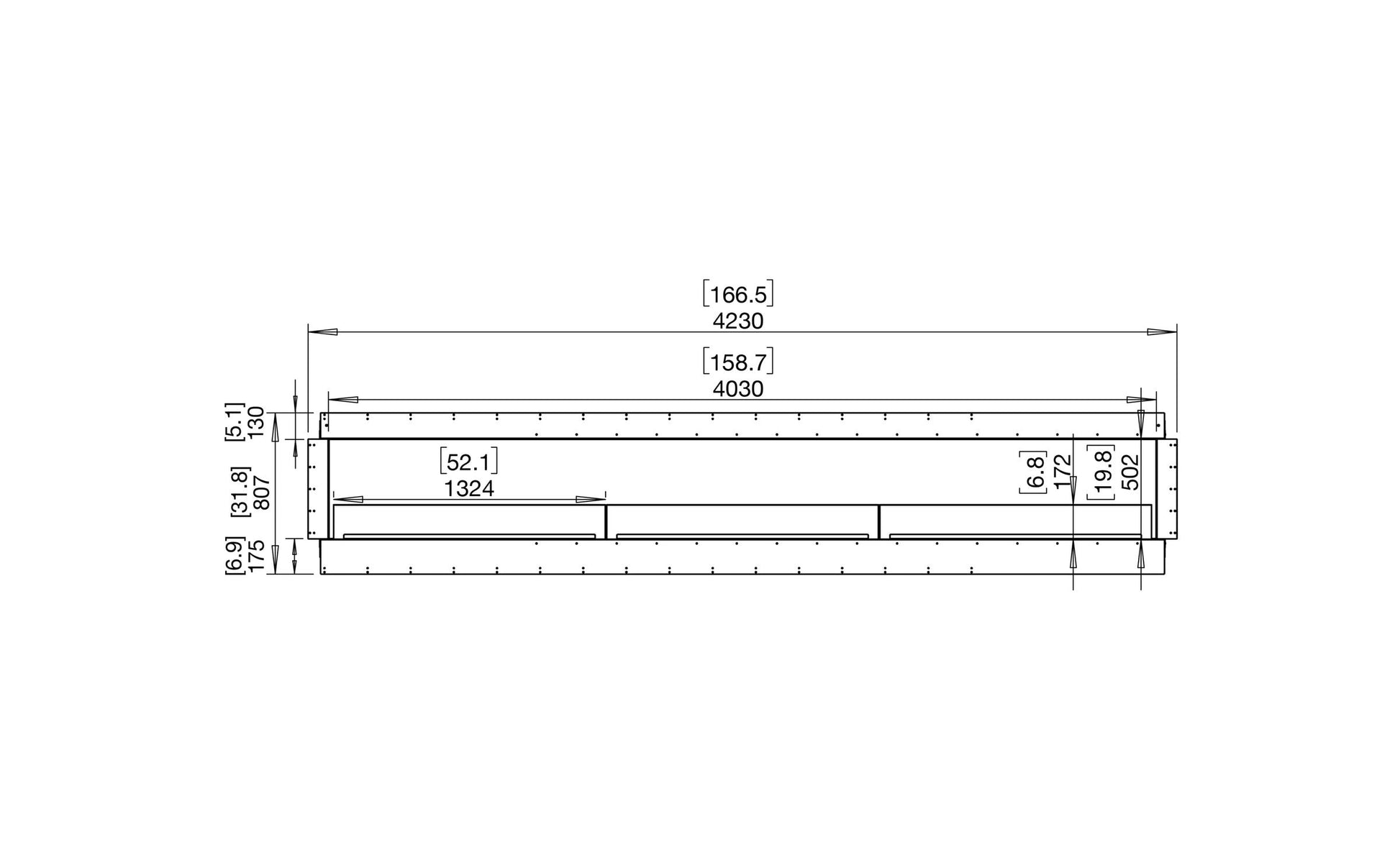

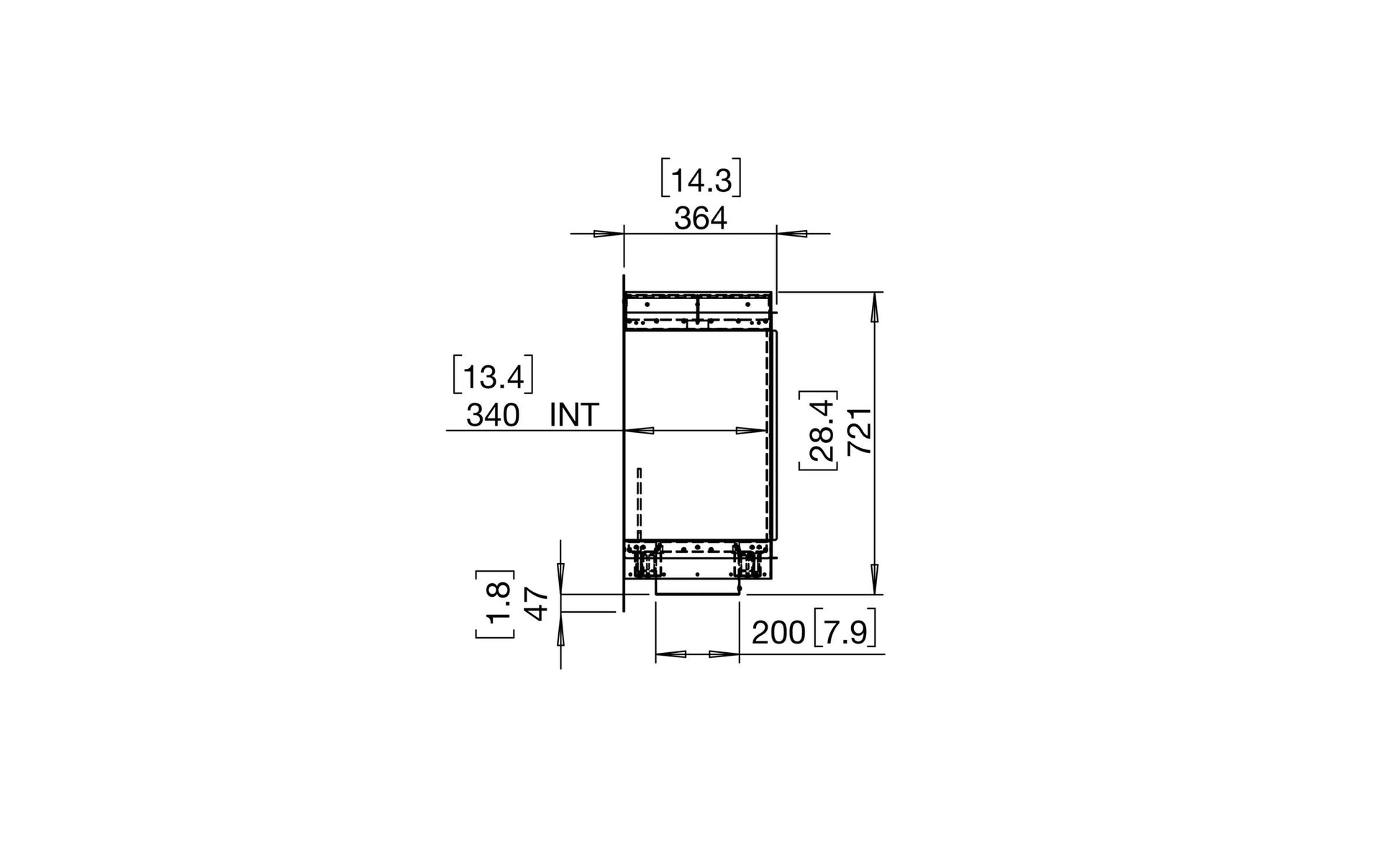

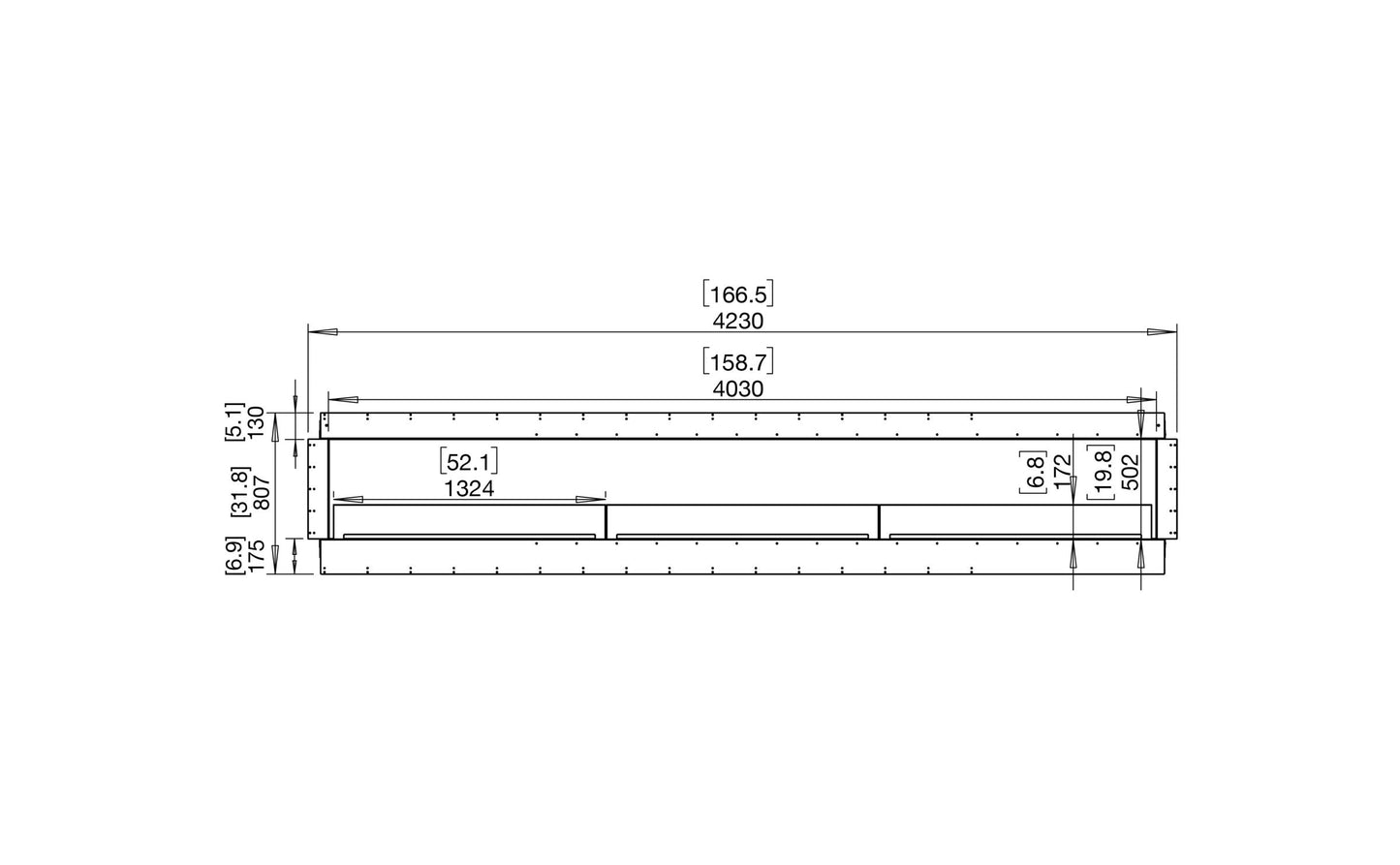

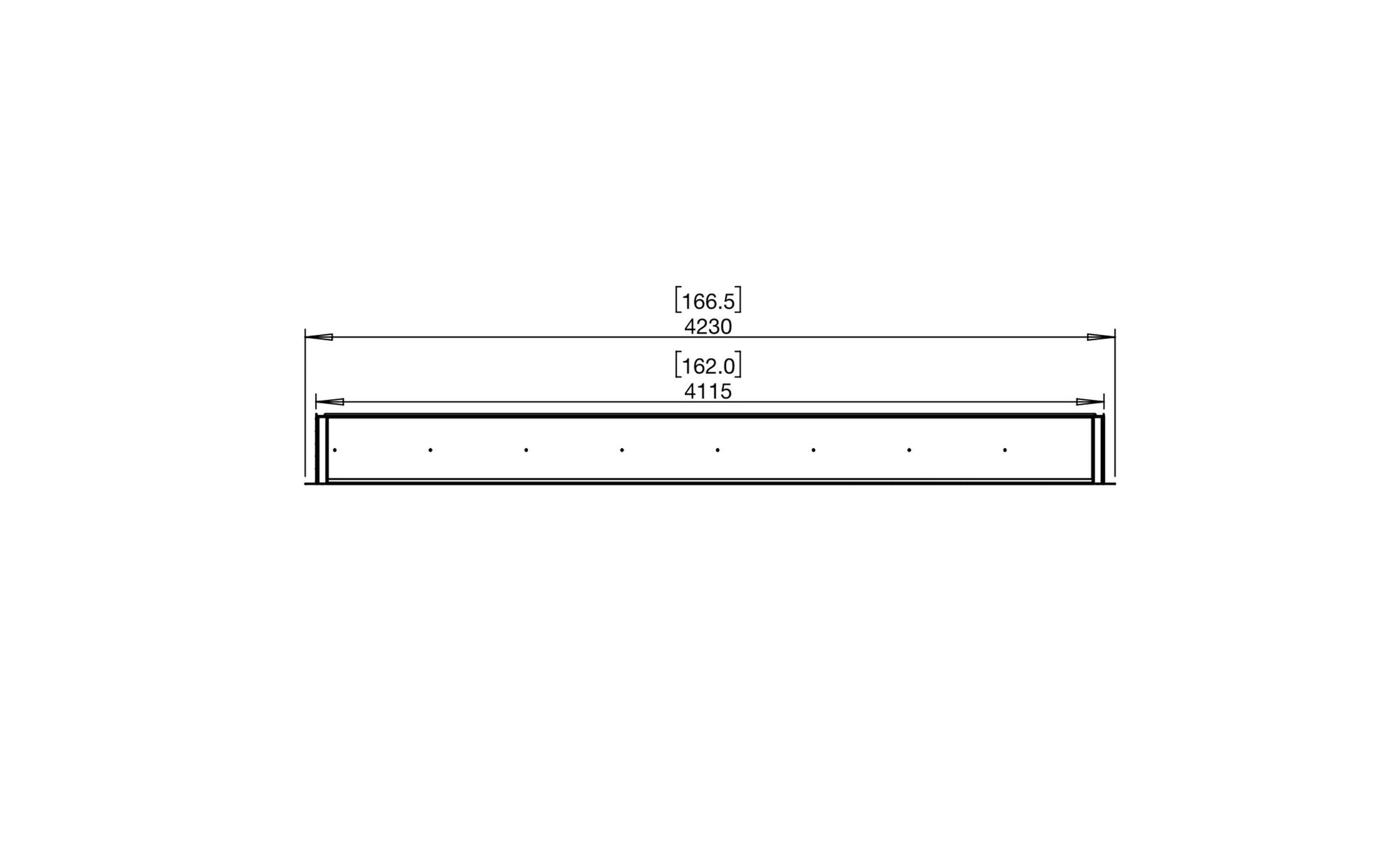

Dimensions (W x D x H)	4230mm x 365mm x 807mm
Surround colour	Black
Burner finish	Stainless Steel (standard) or Black ceramic-coated (+£1,500)
Fuel	Bioethanol only (Indoor or Outdoor)
Thermal output	45,870 BTU/h (48.4 MJ/h)
Burn time	9-14 hours per fill
Fuel capacity	30 litres
Minimum room size (indoor use)	345m³
Burner compliance	EN 16647 compliant burner (manufacturer-approved)
Configuration options	The Flex 158SS offers only two configurations, not four — All Flame (triple XL1200, 45,870 BTU/h, 30L, rated to 345m³) or Log Boxes – Both Sides (triple XL900, 45,000 BTU/h, 27L, 330m³). There is no single-side log-box option at this size. Both configurations are the same price.
